Bradshaw Construction Corporation owns and operates an expansive fleet of well-maintained heavy construction equipment.   In an effort to sustain the growing demands of the tunneling industry, Bradshaw continually updates our equipment inventory to accommodate new technology changes.  The following is a listing of equipment currently available for resale:

MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

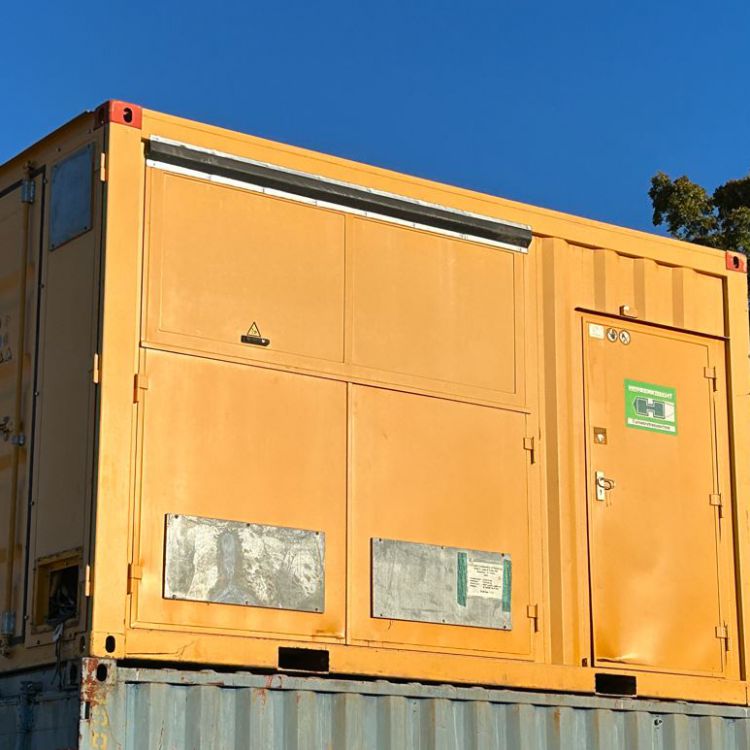

Herrenknecht	C30 Control ContainerM-2031C	2015	Eldersburg, MD	$500,000
	Condition: Used Hours: N/A Dimensions: L 5620 x W 2400 x H 2800 mm Weight: 13,000kg Service: Equipment Specifications: Herrenknecht C30 Control Container is designed for controlling and operating the MTBM, jacking frame, and conveying system. The conveying system is a series of pumps used to convey material and is designed as a fluid circuit. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Herrenknecht	AVN1200TB M-1562M	2019 (Purchased)	Eldersburg,MD	$400,000
	Condition: Used Hours: N/A Dimensions: N/A Weight: 13,000kg Service: N/A Equipment Specifications: Tunneling machine (in conjunction with control assembly) equipped with hydraulic and electrical installations necessary for tunneling. Dimensions: Length (Articulation Shield): 3750mm Length (Machine Can): 3200mm Outer Diameter: 1505mm Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

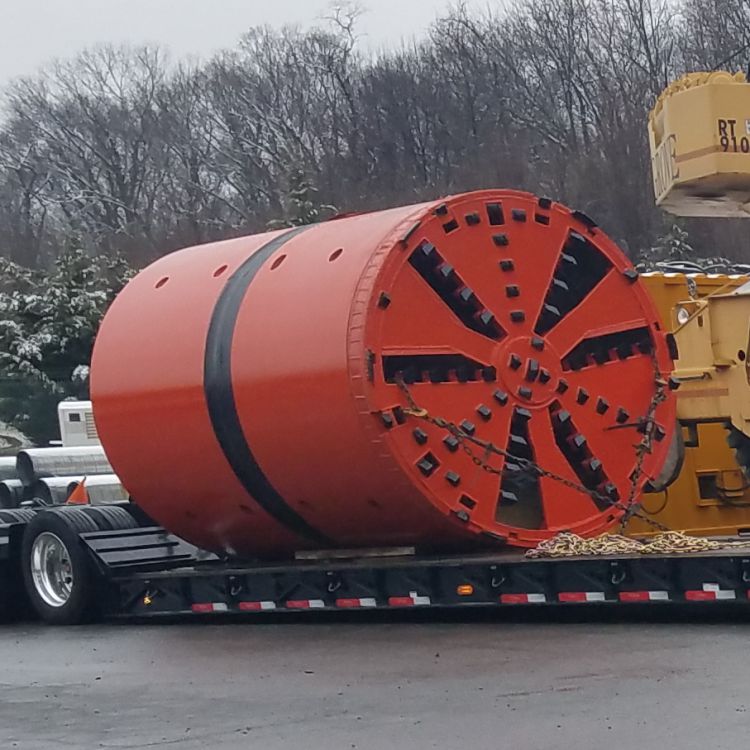

RASA	DH 1900 MTBM System	2008	Eldersburg, MD	$990,000
	Condition: New Hours: N/A Dimensions: N/A Weight: 23,500 kg Service: N/A Equipment Specifications: Tunneling machine w/ slurry conveyance system that can be used in a variety of soft ground/mixed face conditions. Includes control container, cutter wheels, and various upskins. Dimensions: Length: 3785mm Outside Diameter: 2105mm Cut Diameter: 2135mm Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

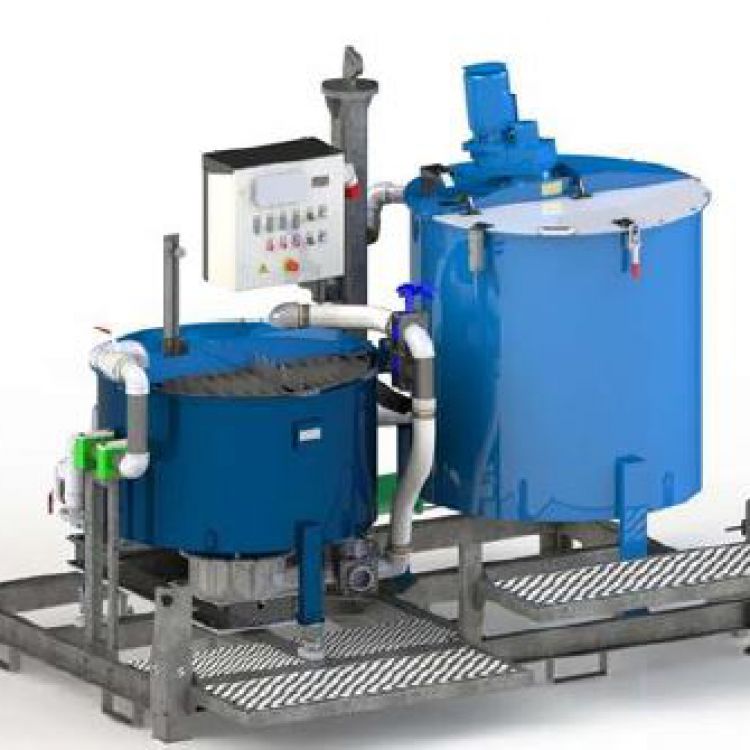

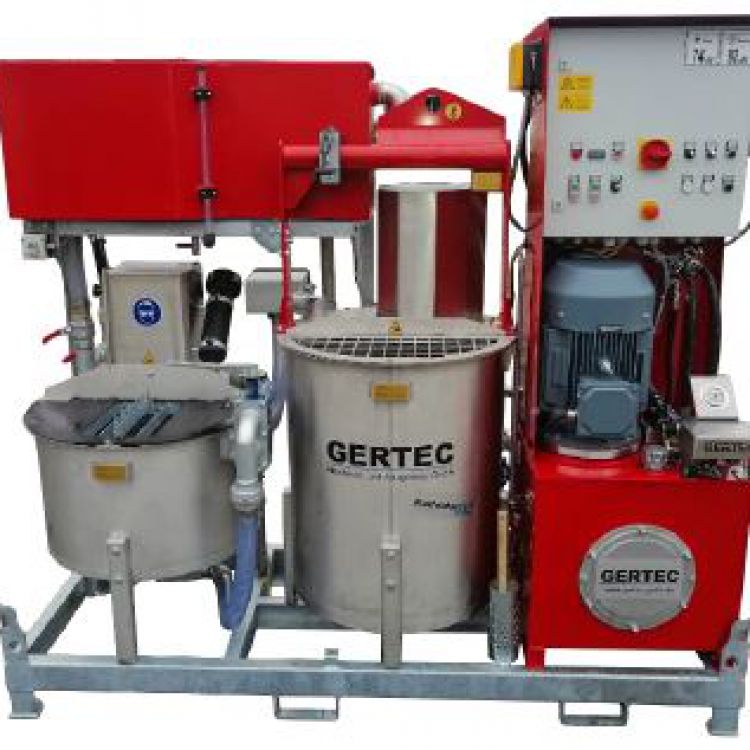

Gertec	IS-53 Grout Plant	N/A	Eldersburg, MD	$25,000
	Condition: Used Hours: N/A Dimensions: L 2.8 x W 2.2 x H 2.4 m Weight: 1410 kg Service: N/A Equipment Specifications: 500L capacity grout plant w/ colloidal mixer that can be used for delivery/injection of slurries or contact grouting. Dimensions: Mixing Capacity: 10 m3/hr Mixing Volume: 500L Agitator Tank Volume: 1000L Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Gertec	IS-80 Lube Plant	N/A	Eldersburg,MD	$15,000
	Condition: Used Hours: N/A Dimensions: L 2.26 x W 0.85 x H 2.1 m Weight: 1200 kg Service: N/A Equipment Specifications: Grout plant suitable for mixing and grouting of bentonite, cement, insulation slurries, and sealing wall components. Dimensions: Mixing Volume: 150L Mixing Capacity: 3 m3/h Agitator Tank: 300L Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

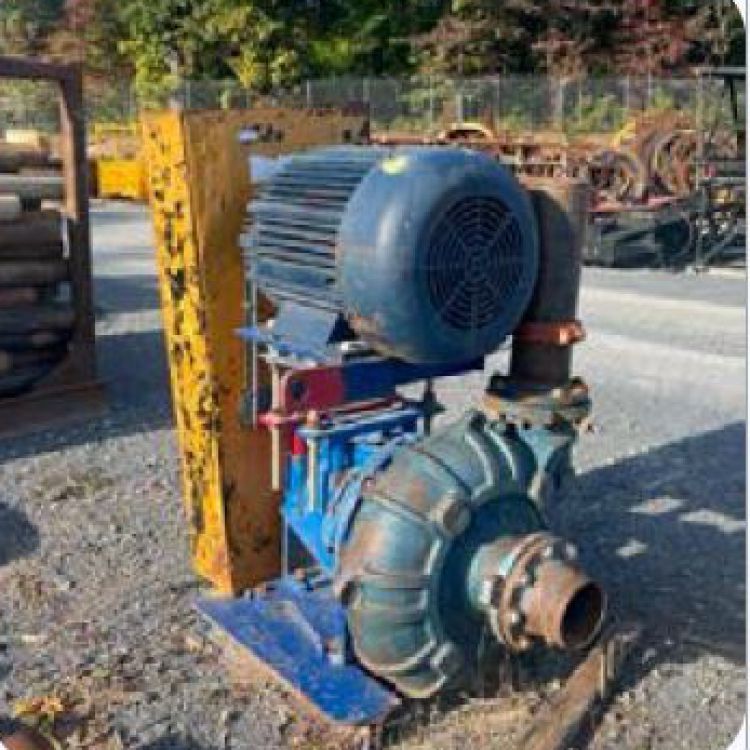

Metso	6" Slurry Pump	N/A	Eldersburg, MD	$25,000
	Condition: New Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: 6" Metso HT150 Slurry Pump w/ 75kW Motor Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

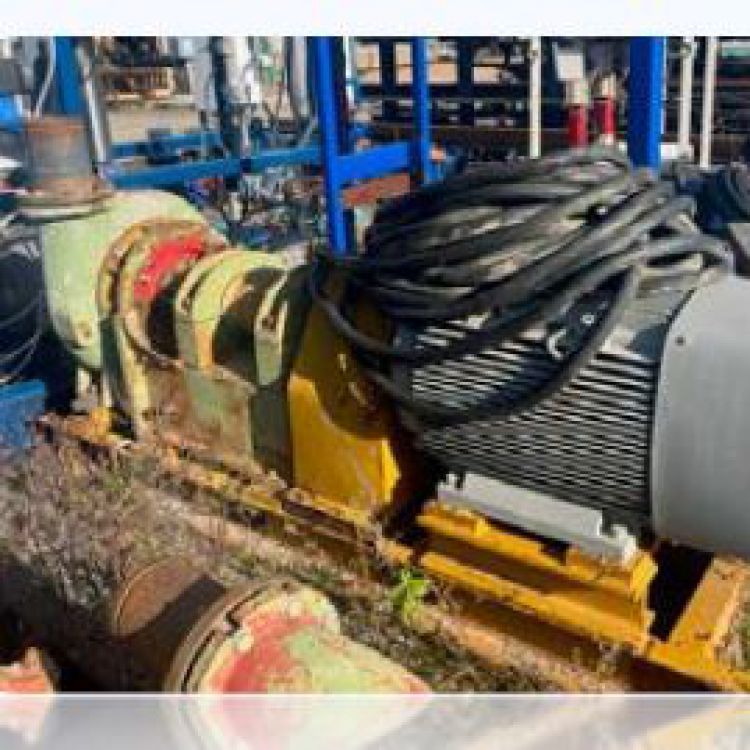

Habermann	6" Slurry Pump	N/A	Eldersburg,MD	$25,000
	Condition: Used Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: Habermann KBK150 Slurry Pump w/ 90kW Motor Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

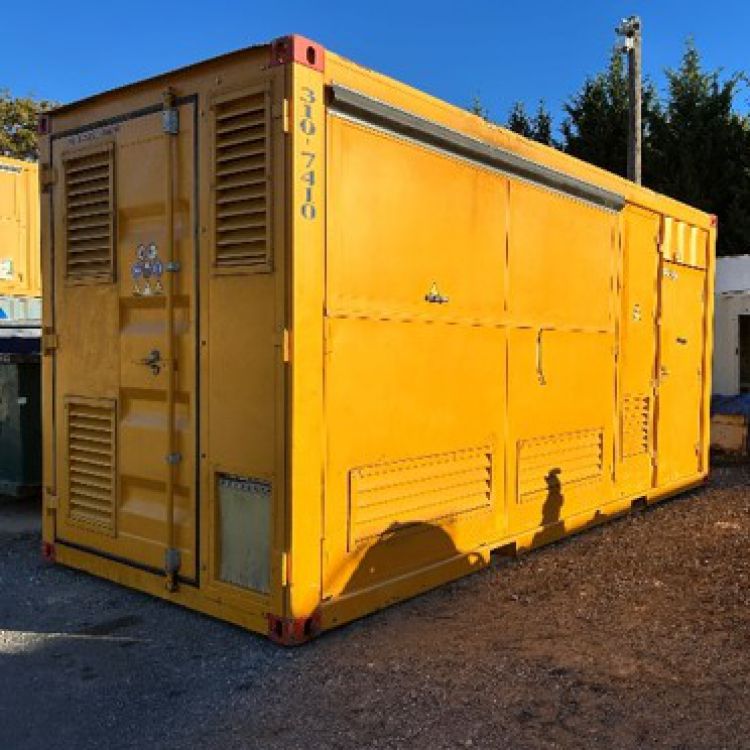

Herrenknecht	C20 Control Container M-2236C	2017	Eldersburg, MD	$300,000
	Condition: Used Hours: N/A Dimensions: L 4560 x W 2400 x H 2800 mm Weight: 9000 kg Service: N/A Equipment Specifications: Herrenknecht C20 Control Container is designed for controlling and operating the MTBM, jacking frame, and conveying system. The conveying system is a series of pumps used to convey material and is designed as a fluid circuit. Container electronics meet CSA requirements. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Grove	RT9100 Crane	2001	Eldersburg,MD	$100,000
	Condition: New Hours: N/A Dimensions: L 48 x W 11.33 x H 13.66 ft Weight: 134,500 lbs Service: N/A Equipment Specifications: See attached specs/chart Attachments : Specs/Chart
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

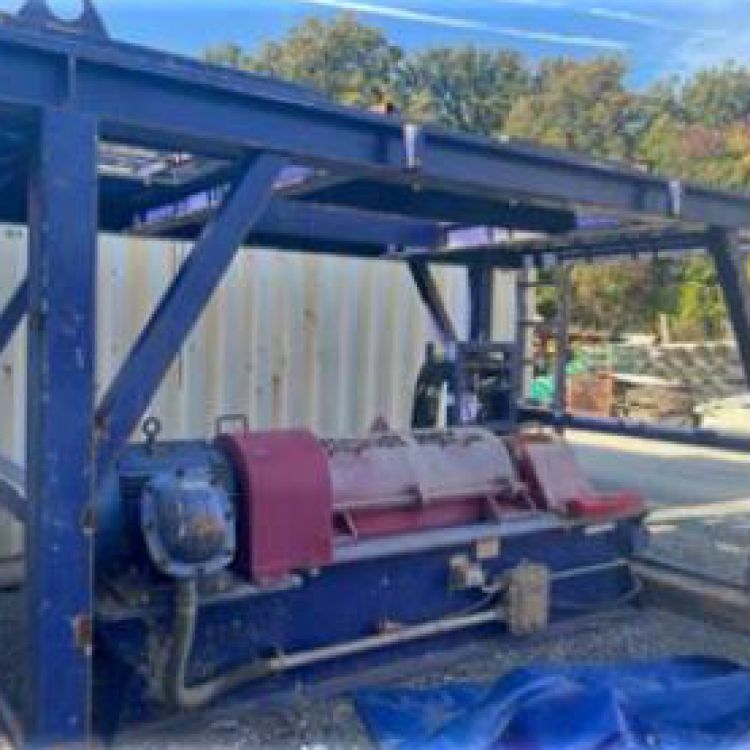

Brandt	1850VS Centrifuge w/ Stand	N/A	Eldersburg,MD	$50,000
	Condition: Used Hours: N/A Dimensions: L 125 x W 46 x H 59 in Weight: 8650 lbs Service: N/A Equipment Specifications: The Brandt 1850VS centrifuge is a solid bowl, variable speed decanter centrifuge used for the removal of solids from liquid. Specifications: Power Requirements: 460V 3-Phase Main Drive: 60HP Bowl Speeds: 900-2400/2700 RPM Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

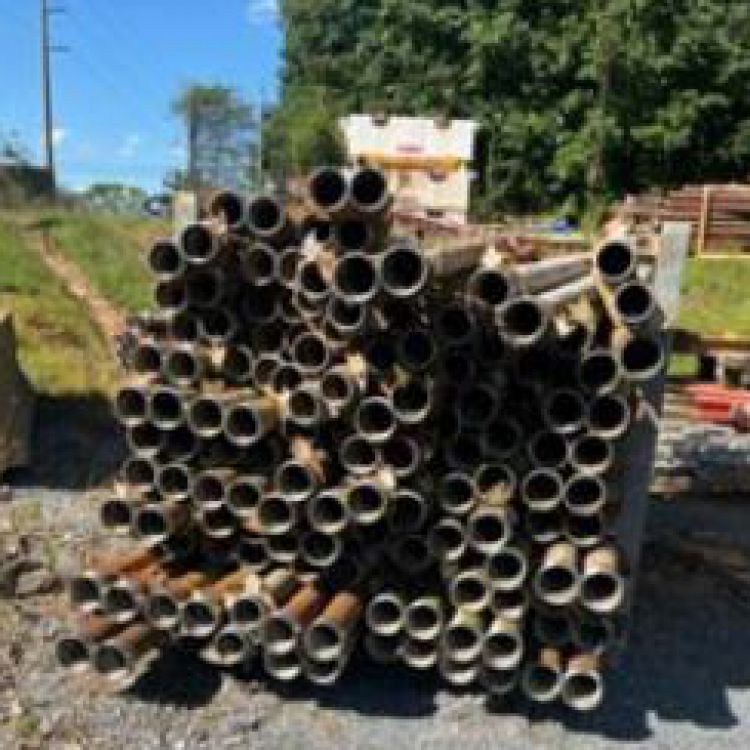

Herrenknecht	4" Slurry Pipe (500ft)	N/A	Eldersburg, MD	$5000
	Condition: Used Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: 4in Tunnel Slurry Pipe Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

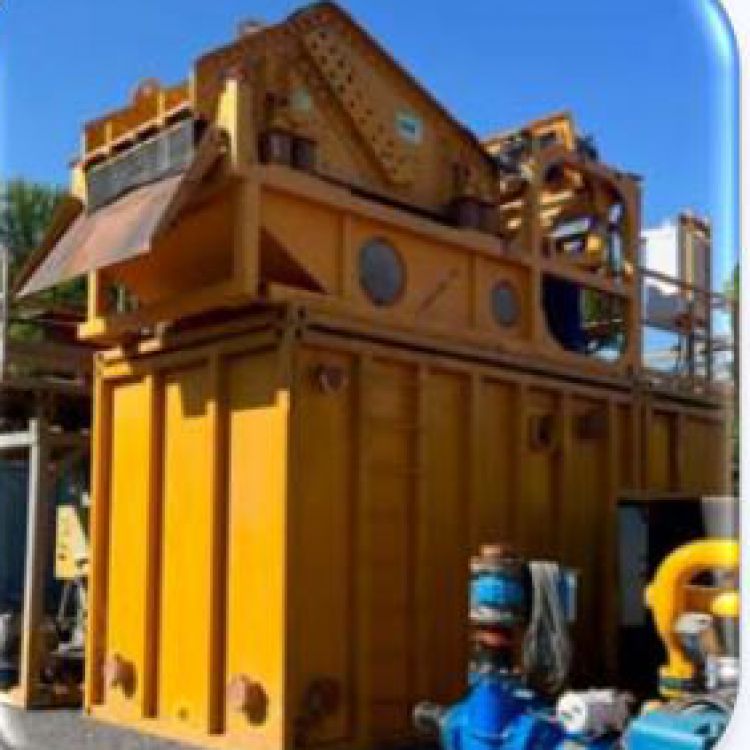

Herrenknecht	HKS-100 Separation Plantw/ Overflow Tank	2017	Eldersburg, MD	$100,000
	Condition: Used Hours: N/A Dimensions: L 5.4 x W 2.5 x H 2.6 m Weight: 11 kg (including tank) Service: N/A Equipment Specifications: The HKS separation system is optimized for the treatment of microtunneling slurries. Specifications: Max Flow: 100 m3/h Course Screen: 2 m2 Dewatering Screen: 2 m2 Hydrocyclones: 2 x 10in Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
VMT	SLS Navigation System	N/A	Eldersburg,MD	$50,000
	Condition: Used Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: VMT SLS navigation system used for advanced MTBM guidance. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
VMT	SLS Nav InterBus System	N/A	Eldersburg,MD	$75,000
	Condition: Used Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: VMT SLS Interbus navigation system used for advanced MTBM guidance. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

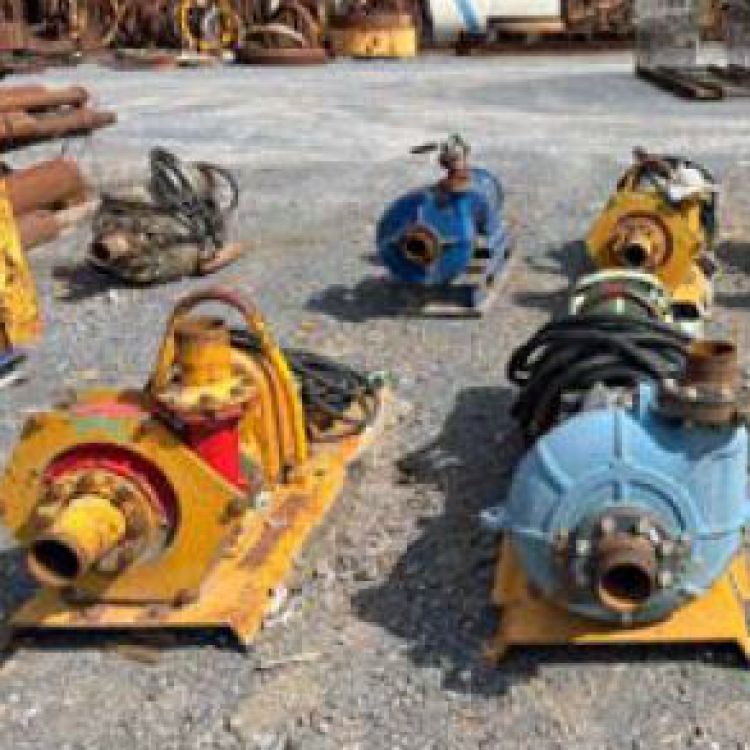

N/A	4in Slurry Pumps (4ea)	N/A	Eldersburg,MD	$30,000
	Condition: Used Hours: N/A Dimensions: N/A Weight: N/A Service: N/A Equipment Specifications: Four, 4in, slurry pumps used for slurry conveyance in microtunneling operations. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

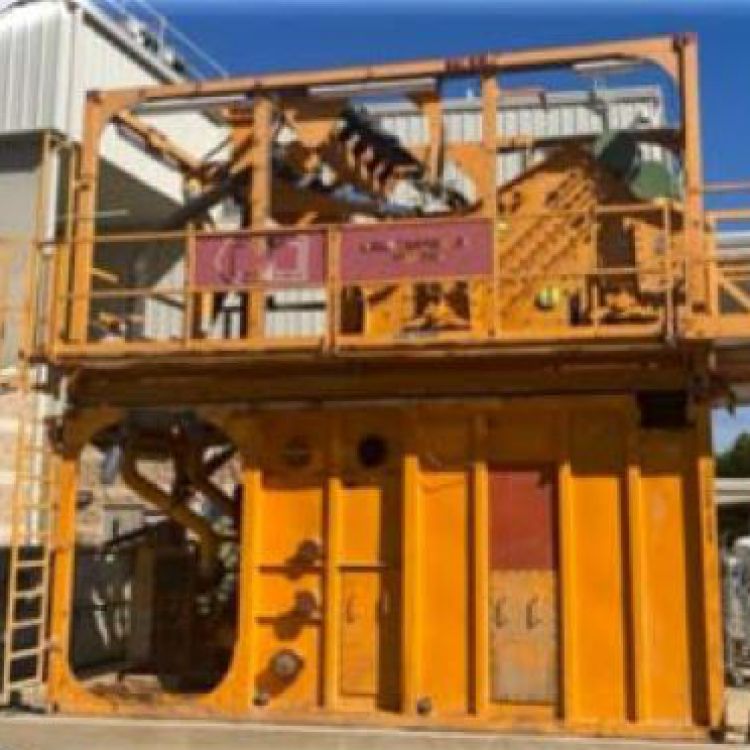

Herrenknecht	HKS-150 Separation Plant	N/A	Eldersburg,MD	$150,000
	Condition: Used Hours: N/A Dimensions: L 6.1 x W 2.5 x H 6.0 m Weight: 20,000 kg Service: N/A Equipment Specifications: The HKS separation system is optimized for the treatment of microtunneling slurries. Specification: Max Flow: 150 m3/h Coarse Screen: 3.2 m2 Dewatering Screen: 3.2 m2 Stage 1 Cyclones: 1 x 15" Stage 2 Cyclones: 4 x 6" Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Ingersoll Rand	G570 Generator	2008	Eldersburg,MD	$70,000
	Condition: Used Hours: Dimensions: L 5000 x W 1560 x H 2550 mm Weight: 12,400 lbs Service: N/A Equipment Specifications: IR G570 generator w/ Cummins QSX15-G9 Engine Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Derrick	DE1000 Centrifuge FHD w/Polymer Unit, Feed Pump, and Stand	2009	Eldersburg,MD	$160,000
	Condition: Used Hours: N/A Dimensions: L 2921 x W 1905 x H 1448 mm Weight: 4050 kg Service: N/A Equipment Specifications: The Derrick DE-1000 is designed for removing low specific gravity solids from slurries. Specifications: Bowl Diameter: 14in Flow Rate: 45.42 m3/h Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

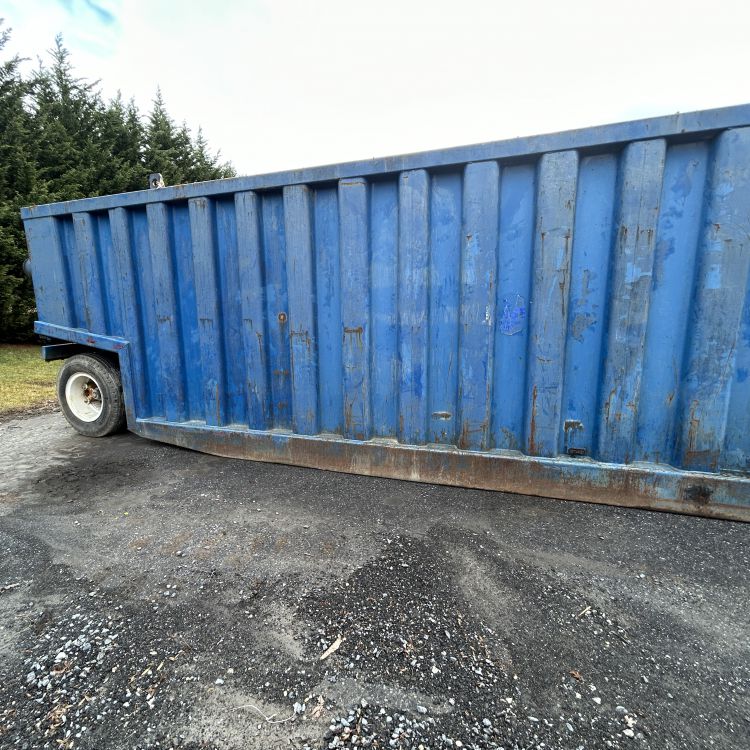

N/A	Frack Tank	N/A	Eldersburg, MD	$10,000
	Condition: Used Hours: N/A Dimensions: 20,000 Gallons Weight: N/A Service: N/A Equipment Specifications: 20,000 Gallon Frack Tank Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $

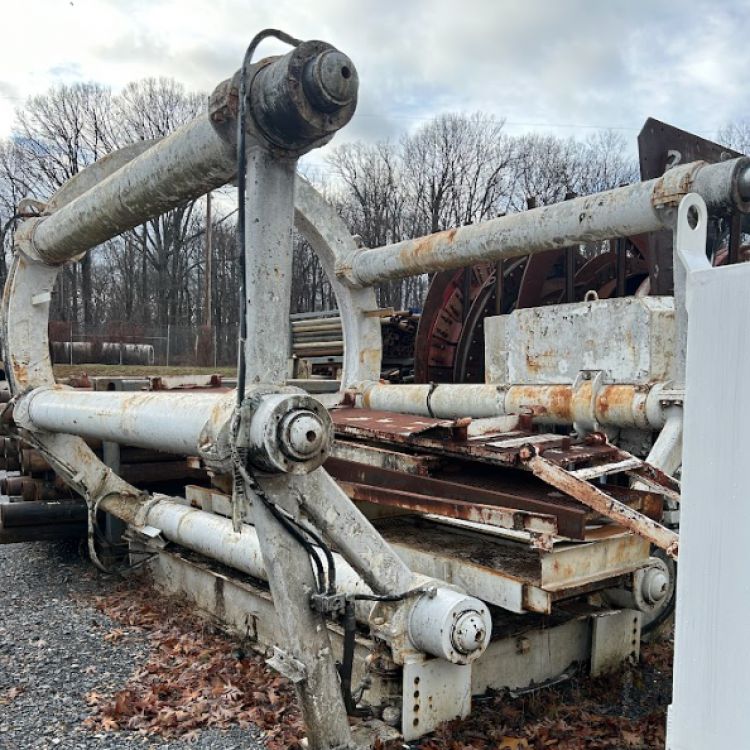

Lovat	800T Jacking Frame w/ Push Ring, Pup, and Extension	N/A	Eldersburg, MD	$50,000
	Condition: Used Hours: N/A Dimensions: 72" Push Ring Weight: N/A Service: N/A Equipment Specifications: Lovatt 800T Jacking Frame, Push Pup, and Extension. Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
Lovat	1200T Jacking Frame, Push Ring, Pup, and Extension	N/A	Eldersburg, MD	$120,000
	Condition: Used Hours: N/A Dimensions: 116" Push Ring Weight: N/A Service: N/A Equipment Specifications: Lovatt 1200T Jacking Frame, 116" Push Ring, Push Pup, and Extension Attachments :
MAKE	MODEL	YEAR	LOCATION	SALE PRICE $
N/A	Muck Cars	N/A	Eldersburg, MD	$30,000
	Condition: Used Hours: N/A Dimensions: 3 Cubic Yards Weight: N/A Service: N/A Equipment Specifications: 6EA 3 cubic yard muck cars Attachments :

Notice: All equipment is sold "AS IS" and payment must be made in advance. All taxes and transportation costs are to be paid by the purchaser. All equipment is sold “SECOND-HAND” and therefore Bradshaw Construction Corporation provides NO WARRANTY of any kind.
